Product introduction

Mainly applied for protection at intervening joint at any arbitrary branch or connecting point on site of electrical cable、communication cable and signal cable which voltage lower than 1kV. Play the role of immobilizing cables.

Cutting off the main cable branch is not necessary. Possess the quality of waterproofing, moisture proof, explosion proof. Electro spark- proof, acid-resisting and alkali resisting. Nice appearance and stable quality. Complete insulated non–conductive, impact resistant variant. It works long -term and stable even when buried underground or in water.  Products are extensively used in power supply, communication、 water conservancy municipal field.

It’s applicable for buried type cable of principal line 4*120-240mm2 and branch 4*6-95mm2. The branch cable is drawn without the principal line being cut off, it saves space and cables.

Product feature overview

Mechanical rigid bushing with polymer foam for sealing

Using two component modified resin pouring technology to fill the rubber. It’s safe、quick and convenient.

Polyester shell using PP material, can be applied to a variety of sizes, excellent sealing design.

The main line and branch cable connection using special ALbolt connection, convenient installation.

Using C type aluminum tube to connect the conductive part of the cable is better in contact which saves space and cables.

The use of double bag vacuum packaging, rubber packaging design to facilitate to on-site mixed filling.

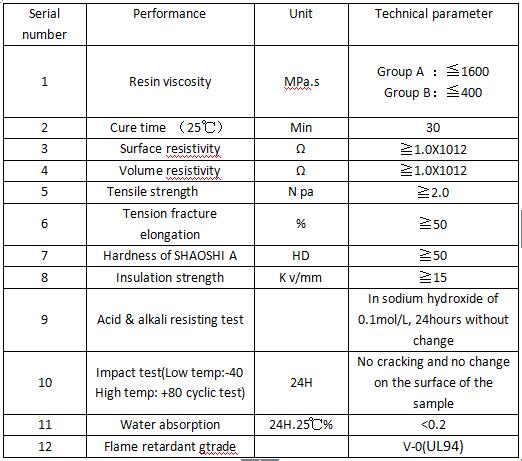

Filling material:  modified epoxy resin + firming agent, main component

Hydrogen isocyanate

Polyether glycol

Silicone hydride coupling agent

Aluminium Tri Hydrate （ATH ）

Excellent protection on insulation、waterproof and mechanical.

The highest IP level can be achieved IP68（Ref standard：IEC60529:2001）

Scope of application

Altitude：<2000m。

Working temperature：-40~130℃

Rated voltage: ≦ 1000v

Applicable temp: -40~130℃
